Prymax Healthcare LLP

About Us

Prymax Healthcare ’s mission is to design, develop, and manufacture novel biotechnology materials to propel specialty product vision into a tangible, highly-competitive and unique product offering.” Today Prymax Healthcare is a leader manufacturer of medical devices for Cardiac Surgery Product, Pressure monitoring Product, Anesthesia critical care Product, Respiratory Product and Dialysis Product Located in the Faridabad (HR), in the NCR A skilled and well motivated team of Engineers are employed in (the) research and development of new advanced products. This permitted to Prymax Healthcare LLP to developed a whole range of devices winning a well position in the international market. The complete new building, is based on 16.000 sqf,. Prymax Healthcare has a certified quality system ISO 13485 & QMS Certified Company.

Profusion Products ........................................................... 01-05
Invasive Pressure Products ........................................................... 06-08
Central Venous Catheters ........................................................... 09-11
Interventional Cardiology Products .................................. 12-15

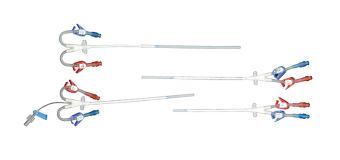

Dialysis Catheter .................................................................................. 16-17
Surgical Products ................................................................................ 18-19
Respiratory Products ....................................................................... 20-21
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal

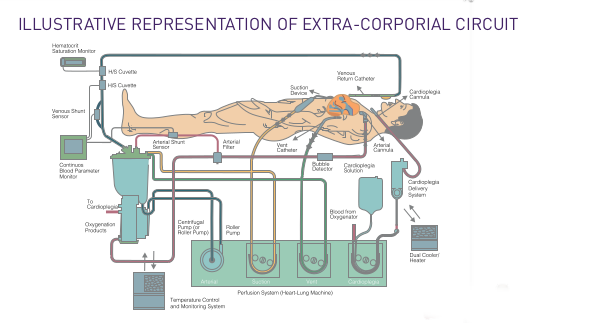

Prymax Perfusion

Customized Perfusion System

HEART LUNG PACK
Class VI implant tested tubing
Non-kinking, transparent, clear tubing
High quality Heart Lung packs can be customized for individual requirement for various cardiac surgical procedures for Adult, Pediatric and Infant.
Options of components include: Gas line filter, Pre by-pass filter, Arterial filter, Leucocyte Filter, SpO 2 monitoring, Tubing organizer, Sucker, LV Vents
Ordering Information PHLP-1017 : Standard
Std. Pack with Arterial Filter
Contact for non obligatory drawings/ quotes/samples.
Additional components can be added per requirements.
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Diposibal
Product Code Filter
PAF-A7 Adult arterial filter with connections 3/8 inlet & outlet
PAF-A7L Arterial filter with connections 3/8 inlet & outlet with bypass loop
PAF-A7LP Adult arterial filter with connections 3/8 inlet & outlet with bypass loop & purge line
PAF-P5 Peadiatric arterial filter with connections 3/8 inlet & outlet
PAF-P5L Peadiatric arterial filter with connections 3/8 inlet & outlet with bypass loop
PAF-P5LP Peadiatric arterial filter with connections 3/8 inlet & outlet with bypass loop & purge line
PAF-I3.5 Import arterial filter with connections 1/4 inlet & outlet
PAF-I3.5L Import arterial filter with connections 1/4 inlet & outlet with bypass loop
PAF-I3.5LP Import arterial filter with connections 1/4 inlet & outlet with bypass loop & purge line
Specifications: Adult Filter
  • 40 m Polyster screen filter
  • Max. blood flow 8 L/min.
  • Priming volume of 179 ml.
  • Excellent air handling
  • Excellent visibility & easy priming.
Specifications: Pead. Filter
  • 40 m Polyster screen filter
  • Max. blood flow 5 L/min.
  • Priming volume of 90 ml.
  • Excellent air handling
  • Excellent visibility & easy priming.
Specifications: Import Filter
  • 40 m Polyster screen filter
  • Max. blood flow 3.2 L/min.
  • Priming volume of 35 ml.
  • Excellent air handling.
  • Excellent visibility & easy priming.

Prymax Healthcare Gallery

  • Heat Exchanger Pleatal type
  • Class VI implant tested tubing
  • Integrated Heat exchanger with bubble trap
  • Priming volume 35 ml
  • High Cooling efficiency
  • Easy set-up & priming
  • Non-toxic & pyrogen free
  • Blood inlet-outlet connection -1/4”
  • Built in bridge for choice of 100% Blood or 100% Cardioplegia solution delivery
  • Heat Exchanger Coil
  • Advanced fluid/gas mixing technology for controlled delivery of CO 2 and saline during off-pump surgery
  • Consistent & predictable blood clearing mist
  • Improved visibility at anastomosis and surgical site
  • Class VI implant tested tubing, DEHP Free
  • Only blower cannula without tubing and set available

Ordering Information:
Blower with tubings and fluid set

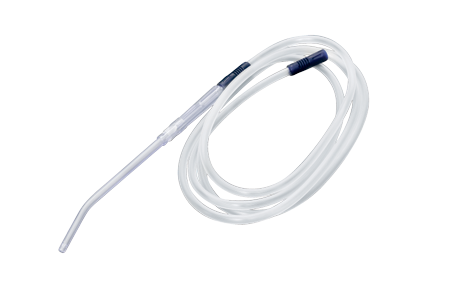

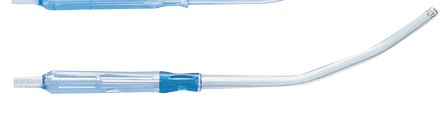

Sucker Adult

These suction tubes feature a comfortable hand grip. The tip shaft is made from rigid stainless steel. The Macro Sucker has a fluted pool tip to maximize suction and minimize tissue trauma.



Sucker Pediatric

The Sucker Pediatric has a soft, vented tip designed to clear blood from the anastomotic site with gentle suction.



Important Safety Information

Care and caution should be taken to avoid damage to vessels and cardiac tissue during cannulation or other cardiac surgery procedures.



One Piece body, Straight or Curved tip, available with connector acceptance, vented connector or non-vented connector. An adjustable or fixed depth ring together with tip & depth line precise position of all cannula.

Pediatric- 20 cm length
Straight Tip Part No. Curved Tip Part No. Specification
PAC-S10 PAC-C10 10Fr
PAC-S12 PAC-C12 12Fr
PAC-S14 PAC-C14 14Fr
PAC-S16 PAC-C16 16Fr
PAC-S18 PAC-C18 18Fr
Adult-20 cm length
PAC-S20 PAC-C20 20Fr
PAC-S22 PAC-C22 22Fr
PAC-S24 PAC-C24 24Fr
PAC-S26 PAC-C26 26Fr

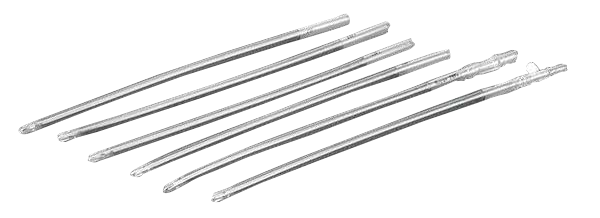

These cannula feature beveled, thin wall tips with elongated, one piece, kink resistance wire reinforce bodies.This construction allows for higher flow rates with minimal pressure differential. An introducer along with depth markings permits precise positioning of the cannula.

Vented Part No. Non-vented Part No. Specification
PAC-08V PAC-08 NV 08Fr
PAC-10V PAC-10NV 10Fr
PAC-12V PAC-12NV 12Fr
PAC-14V PAC-14NV 14Fr
PAC-16V PAC-16NV 16Fr
PAC-18V PAC-18NV 18Fr

Single stage, wire reinforced wall.

Round Body Part No. Oval Body Part No. Specification
PVC-SS14 RB PVC-SS14 OB 14Fr
PVC-SS 16 RB PVC-SS16 OB 16Fr
PVC-SS18 RB PVC-SS18 OB 18Fr
PVC-SS 20 RB PVC-SS20 OB 20Fr
PVC-SS 22 RB PVC-SS22 OB 22Fr
PVC-SS 26 RB PVC-SS26 OB 26Fr
PVC-SS 26 RB PVC-SS26 OB 26Fr
PVC-SS 28 RB PVC-SS28 OB 28Fr
PVC-SS 30 RB PVC-SS30 OB 30Fr
PVC-SS 32 RB PVC-SS32 OB 32Fr
PVC-SS 34 RB PVC-SS34 OB 34Fr
PVC-SS 36 RB PVC-SS36 OB 36Fr
PVC-SS 38 RB PVC-SS38 OB 38Fr


Two stage, wire reinforced wall

Part No. Specification
Normal Body
PCVC-TS32/40 RB 32/40 Fr
PCVC-TS34/46 RB 34/46 Fr
PCVC-TS36/46 RB 36/46 Fr
PCVC-TS36/51 RB 36/51 Fr
Oval Body
PCVC-TS32/40 OB 32/40 Fr
PCVC-TS34/46 OB 34/46 Fr
PCVC-TS36/46 OB 36/46 Fr
PCVC-TS36/51 OB 36/51 Fr
Screw Body
PCVC-TS32/40 SB 32/40 Fr
PCVC-TS34/46 SB 34/46 Fr
PCVC-TS36/46 SB 36/46 Fr
PCVC-TS36/51 SB 36/51 Fr

These cannula feature flanged, radiopaque basket tipes or soft silicon tips attached to large bore. Malleable stainless stell shafts. All cannula have a female Luer connection site.

45° Tip Part No. 90° Tip Part No. Specification
PCA-10A45 PCA-10A90 10 Fr
PCA-12A45 PCA-12A90 12 Fr
PCA-14A45 PCA-14A90 14 Fr

Bringing Loving Care to Health Care

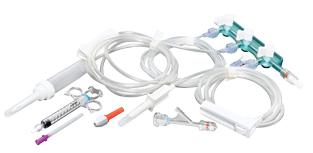

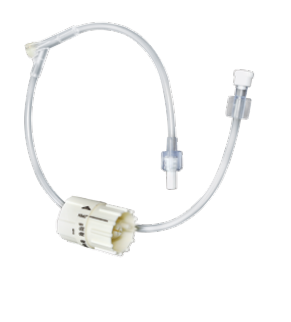

Invasive Blood pressure Transducer

Integrated unit for clinical accuracy Dual Mode of flushing: Controlled squeeze & Snap-tab Completely transparent for ease of priming and debubbling Available with flushing of 3cc/hr, 30cc/hr or without flush Easy Zeroing

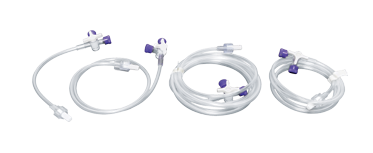

Pressure Monitoring Lines Choice of length from 4” to 100” Choice of colour - Red, Blue, Yellow & Transparent Minimum Priming Volume ID 1.27 mm x OD 2.79 mm Peadiatric Pressure Monitoring Lines Low Prime Lines Extension Lines (with or without stopcock) DEHP Free tubing

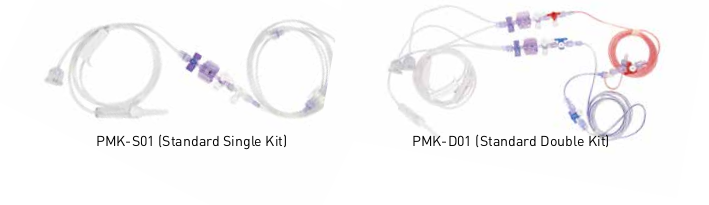

Choice of standard Single, Double and Triple kits Custom Design kit as per user specifications and requirement Option of Closed loop blood sampling kit available including needleless sampling site DEHP Free tubing Contact for non-obligatory schematic design / samples Schematic design of PMK-S01 (Standard Single Kit) PMK-D01 (Standard Double Kit) PMK-T01 (Standard Triple Kit)

Common features for 1011 & 1051

  • Precise flow rate control of IV fluids with range of 5 to 250 ml/hr
  • With “Y” injection port (latex or latex free) for intermittent medication
  • Also available with thumb support “Y” injection port and Needle free “Y” site
  • Soft & kink resistance PVC tubing
  • Male luer connector at one end and female luer connector at other end
  • Standard tube length : 20 cm without “Y” site & 40 cm with “Y” site
  • Tube dia : I Ø 3.0 mm, O Ø 4.1 mm

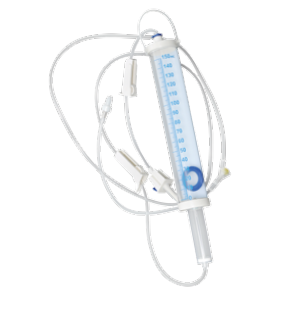

Measured Volume Fluid Administration Set

  • Transparent, soft, cylindrical & calibrated measured volume chamber with bold marking scale
  • Bacteria retentive air inlet
  • Injection port for intermittent medication
  • Automatic shut off valve prevents air trapping in the fluid line once the measured volume chamber is empty, and it also indicates the level of liquid
  • 15u space minimise fluid filter to reduces particulate matter
  • Approximately 60 drops/ml
  • Soft and kink resistant PVC tubing
  • Standard tube length : 150 cm
  • Tube dia : I Ø 3.0 mm. & O Ø 4.1 mm
  • Available in size: 100 ml, 120 ml, 150 ml

Transforming Healthcare in Every Direction

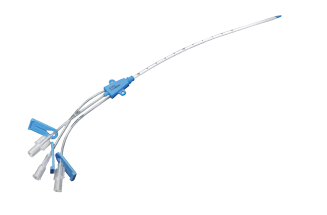

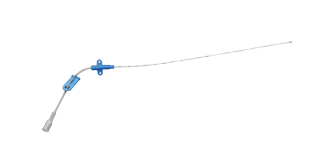

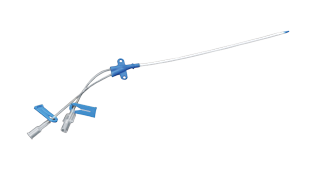

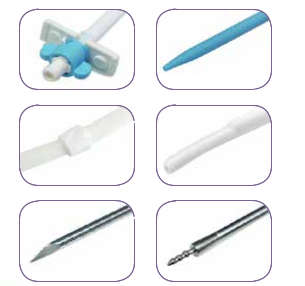

  • Central Venous Catheter made of specially formulated and biocompatible Polyurethane material provides strength during insertion and also softens at body temperature to conform to the body tissues and reduces the risk and vascular trauma.
  • Specially designed soft & beveled tip for smooth & easy insertion of catheter
  • Soft Flexible J-Tip Guide wire prevents the vessel perforation and also provides good torque to ensure firm insertion
  • Sufficiently radio-Opaque material of catheter with clear,definite marking facilitates correct placement of catheter tip
  • Sterile ready for use
  • Individually tray packed

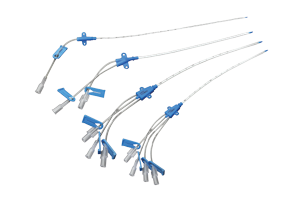

  • Central Venous Catheter made of specially formulated and biocompatible Polyurethane material provides strength during insertion and also softens at body temperature to conform to the body tissues and reduces the risk and vascular trauma.
  • Specially designed soft & beveled tip for smooth & easy insertion of catheter
  • Soft Flexible J-Tip Guide wire prevents the vessel perforation and also provides good torque to ensure firm insertion
  • Sufficiently radio-Opaque material of catheter with clear,definite marking facilitates correct placement of catheter tip
  • Sterile ready for use
  • Individually tray packed

OUTSTANDING PERFORMANCE PROFILE FOR AN EFFICIENT TREATMENT

Specially Designed Soft & Conical Tip ensures Atraumatic, Safe & Easy Insertion

SBiocompatible PU material is stiff & non kinking at roomtemperature, but softens at body temperature.

Radiopaque catheter & length markings ensures accurate placement.

Full range of Adult, Pediatric & Infant CVC Kits are available.

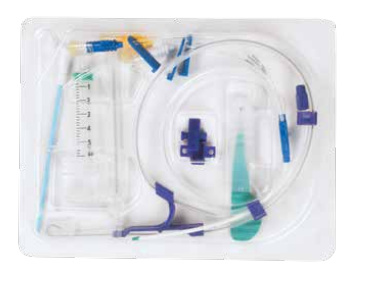

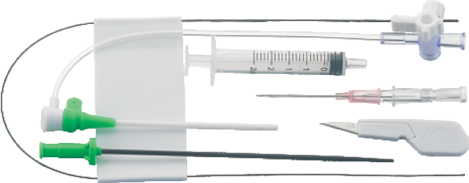

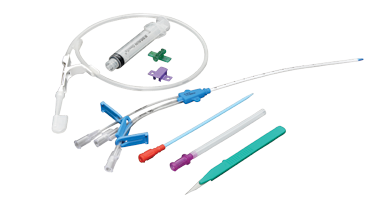

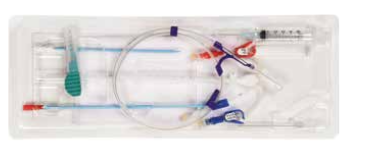

Components Of Standard Kit

Kink resistant Nickel-Titanium Guidewire with soft & flexible J - tip offers better torque which helps in easy insertion & prevents vessel perforation. Wires are Double Distal.2 piece design of guidewire advancer.

CVC kits are available with options of std. Needle, Needle with Back Flow valve & Introducer Syringe.

  • Indwelling catheter
  • Y-Introducer needle with check valve
  • J-Tip guide wire
  • Vessel dilator
  • Luer lock syrings
  • Scalpel
  • Catheter holder
  • Catheter holder clamp
  • Injection cap
  • Extension Line Clamp
  • Guiding Syringe/LOR Syringe (Optional)

Exceptional Technology Extraordinary Care

Interventional Cardiology Systems

Manifold Ordering Information
Choice of 2, 3 or 4 Core On Handle Off Handle
Options of colour handle 4 Core PMF-4RN PMF-4RF
Clear material for easy detection of bubbles 3 Core PMF-3RN PMF-3RF
Large bore for maximum flow 500 PSI Variants available on request. 2 Core PMF-2RN PMF-2RF
Manifold Ordering Information
Choice of 2, 3 or 4 Core On Handle Off Handle
Options of colour handle 4 Core PMF-4RN PMF-4RF
Clear material for easy detection of bubbles 3 Core PMF-3RN PMF-3RF
Large bore for maximum flow 500 PSI Variants available on request. 2 Core PMF-2RN PMF-2RF


Control Syringe Ordering Information
Choice of 10cc, 12cc or 20cc capacity 10cc PCS-10RL
Low friction hub 12cc PCS-12RL
Without Ring Handle (PCS-10LL) 10cc PCS-10LL
Bold marking for correct measurement of dosage
Finger grips for one hand operation
Rotating male luer lock
20cc PCS-20RL


Control Syringe Ordering Information
Customised sets available upon PCT-01


High Pressure Line Ordering Information
Choice of length from 10, 24”, 36” or 48”, 80" 10” PHT-10
Braided PU material, 1200 PSI rating 24” PHT-24
Rotating male luer lock 48” PHT-48
36" PHT-36
80" PHT-80


Guide Wires

Variety of guide wires available in following variants:
O.D. : 0.018”, 0.021”, 0.025”, 0.032”, 0.035”, 0.038”
Length : 45cm, 60cm, 70cm, 150cm, 260cm
Material : Stainless steel wires with PTFE coated and Non coated, Marked Nitinol
Tip : J tip, Straight


Ordering Information

For guide wire - Length 260cm, PTFE coated

0.032” 0.035” 0.038”
JTip PGW-32J150
PGW-32J260
PGW-35J150
PGW-35J260
PGW-38J150
PGW-38J260
Straight Tip PGW-32S150
PGW-32S260
PGW-35S150
PGW-35S260
PGW-38S150
PGW-38S260

The Hydrophilic wires also available upon request.



Introducer Needle Ordering Information
Highly precise, atraumatic bevel tip needle 18Gx7cm
20Gx4cm
21Gx4cm
PIN-18G4
PIN-20G4
PIN-21G4

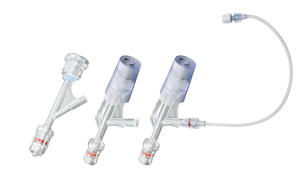

Hemostasis Y: Push-Pull / Rotating /Click type Ordering Information
Large bore Hemostasis Y Standard- PHYL -S 01
Compatible with catheters from 4Fr Hemostasis Y Click Type - PHYL -C 02
upto 9Fr and guide wires from 0.014” to Hemostasis Y Push/Pull - PHYL - P03
0.038” dia Rated pressure 480 PSI Hemostasis Y Click Type includes Ext. Line
25cms - 4 way- PHYL - CE01

Spcl. feature of Click Y Septum can be used in OPEN, SEMI OPEN and FULL CLOSED position


Customised Extension Lengths Available Upon Request

Torque Device

Perfect grip for easy manipulation of guidewire

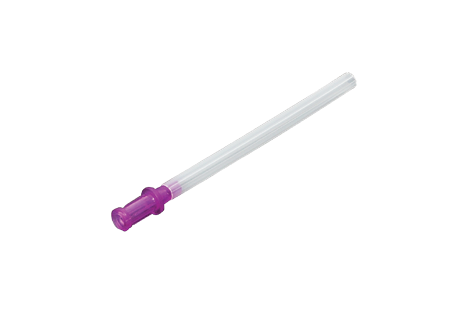

Blunt Needle

Insertion Tool/Blunt Needle


Ordering Information

PTD-01

Torque Device

Ordering Information

20GX10cm PIN-B20G10

CATHLAB KITS

Pre-assembled kits for the convenience & quick set during cathlab procedures Customised as per procedural needs & cathlab protocols.

PAK-01(3RN) Manifold 3 Port R/On, IV Set, Contrast Line, 10ml Control Syringe, 40” PM Line, ‘Rotating’ Haemostasic Y, Torque Device, Blunt Needle, 20” M/F extension & Injector Connector.
PAK-02(2RN) Manifold 2 Port R/On, IV Set, 10ml LL Syringe, 40” & 20” PM Line, 10ml syringes
PAK-03 Hemostasic Y ‘Click-Press’ type with 10” extension, Torque Device & Blunt Needle.
PAK-04 Hemostasic Y, ‘Rotating ‘ type, Torque Device, & Blunt Needle
PAK-05 Accessories Kit Includes Haemostasic Y Click Type, Torque Device, Needle.
PAK-06 Haemostasic Y, ‘Push-Pull’ type with 10” extension, Torque Device, & Blunt Needle

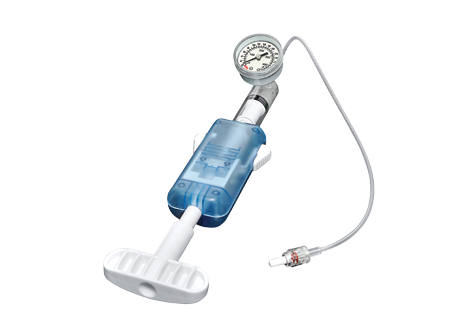

PAK-07 Inflation Device 30atm, Haemostatic Y ‘Rotating’ type, Torque Device, & Blunt Needle
PAKT-08 Accessories Kit includes Push/Pull Y with Extension 25 cms and 4 way Stopcock.
PAKT-09 Extension line 25 cm with 3 way stopcock, Bluent Needle, Torque Device
PAKT-10 Manifold 3 port R/Off, IV set (02 Nox), PM Line 120 cm, Syringe 10 ml LL
PAK-11 Haemostasic Y Click-Press type with 50 cm, Torques Devices, Blunt Needle
PAK-12 Haemostasic Y Push/Pull, Torque Device, Blunt Needle

(Other Customised kits also available upon request)

Inflation Device

Is perfect for a wide array of applications such as ballon catheterization, stent deployment and fluid delivery.

Smart Design

Its stable design and ergonomic handle make it easy to control.The quick latch mechanism allows for one-handed deflation, even at full pressure.
The clear barrel provides medical staff with a precise view of the content and volume allowing the user to observe the purging of the bubbles.

  • Broad Applications
  • Peripheral
  • Urological
  • Neurology
  • Biliary
  • ENT
  • Cadiology
  • Radiology
  • Gastrointestinal
  • Orthopedics
  • Pulmonary
Femoral
Size Colour Sheat Dilator Needle Guidewire Part No
OD mm ID mm Length cm Size guage Length cm Size guage Length cm Size inch Length cm
9F BLACK 3.96 3.07 11 9F 15.0 18 7.0 0.035 45 PISF-9F18G35SS
8F BLUE 3.58 2.74 11 8F 15.0 18 7.0 0.035 45 PISF-8F18G35SS
6F GREEN 2.94 2.15 11 6F 15.0 18 7.0 0.035 45 PISF-6F18G35SS
5F GRAY 2.64 1.85 11 5F 15.0 18 7.0 0.035 45 PISF-5F18G35SS
5F GRAY 2.64 1.85 11 5F 15.0 21 4.0 0.018 45 PISF-5F21G18SS
Radial
6F GREEN 2.83 2.20 7.4 6F 13.0 20 4.0 0.025 45 PISR-6F20G25SS
5F GRAY 2.54 1.89 7.4 5F 13.0 20 4.0 0.025 45 PISR-5F20G25SS

Dilator locking prevents retrograde movement.
All sets includes syringe of 2.5 ml & surgical blade.
Variants available upon request.

Dialysis Catheter System

You'll Love The Way We Care For You

Dialysis Catheter

    Polyurethane material.
  • Soft, geometrically designed conical tip to ensure easy insertion and prevent catheter related trauma.
  • Clear silicon lumen extensions for enhanced visibility and safety.
  • Available in Adult & Pediatric Sizes.

Specifications & Ordering information

Part No Dialysis Catheter Dilator Guidewire Scalpel Needle Syringe
Straight Extension
PDC-S108016R 1 Lumen 8F 16cms 9FX10cm 0.035 x 70 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
PDC-S206511R 2 Lumen 6.5F 11cms 7FX10cm 0.021 x 45 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
PDC-S208511R 2 Lumen 8.5F 11cms 9FX10cm 0.021 x 45 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
PDC-S211513R 2 Lumen 11.5F 13cms 11.5F X 20 cm 10 Fx 15cms 0.035 x 70 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
PDC-S212016R 2 Lumen 12F 16cms 11,5F X 20 cm 10Fx 15cms 0.035 x 70 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
PDC-S312016R 3 Lumen 12F 16cms 11.5FX20cm 10 F x 15 cms 0.035 x 70 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
Curved Extension
PDC-C206511R 2 Lumen 6.5F 11cms 7FX10cm 0.021 x 45 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
PDC-C208511R 2 Lumen 8.5F 11cms 9FX10cm 0.021 x 45 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
PDC-C211513R 2 Lumen 11.5F 13cms 11,5F X 20 cm 10 F x 15 cms 0.035 x 70 cm 11 No. Thumb Blade/td> 18G 7cms 5ml Syringe
PDC-C212016R 2 Lumen 12F 16cms 11.5F X 20 cm 10 F x 15 cms 0.035 x 70 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
PDC-C312016R 3 Lumen 12F 16cms 11.5FX20cm 10Fx 15cms 0.035 x 70 cm 11 No. Thumb Blade 18G 7cms 5ml Syringe
  • Option of ordering the catheter individually (Non-kit configuration).
  • Above catheters are also available with Introducer Syringe & Y Needle on demand/request.
  • Soft, geometrically designed conical tip to ensure easy insertion and prevent catheter related traumal.
  • Clear silicon lumen extensions for enhanced visibility and safety.

Features & Benefits:

  • The Catheter is from premium Silicone, which has excellent biocompatibility.
  • The decron cuff can protect immigration of catheter and reduce the chance of CRBI [ Catheter Related Bloodstream Infections]
  • The silicone material makes cathter more floppy,hence it can minimze the trauma to the vein and reduce the incident of clot.

Standard Kits include:

  1. Silicone Catheter
  2. Vessel Dilator
  3. Introducer Needle
  4. Guide-wire
  5. Tunneler(Trocar)
  6. Valved Peelable Introducer
  7. Heparin Caps
  8. Scalpel
  9. Syringe

Prymax Surg

Surgical Innovations

Always Caring Always Here

Surgical Innovations

TDC - Length 45 cm

Sizes (fr) Straight Angled
12 PTDC-12 PTDC-12A
16 PTDC-16 PTDC-16A
20 PTDC-20 PTDC-20A
24 PTDC-24 PTDC-24A
28 PTDC-28 PTDC-28A
32 PTDC-32 PTDC-32A
36 PTDC-36 PTDC-36A
Description Product Code
Cautery Pencil PCP-03
Cautery tip cleaner PTC-01
Cautery Pencil with tip cleaner PCP-TC-03
Cautery plate adult std#2500 PCP-A01
Description Product Code
Red, Silicon breadth 0.88 x 406mm PVL-RM75
Blue, Silicon breadth 0.88 x 406mm PVL-BM77
Yellow, Silicon breadth 0.88 x 406mm PVL-YM79
White, Silicon breadth 0.88 x 406mm PVL-WM81
Red, Silicon breadth 1.0 x 406mm PVL-RMX76
Blue, Silicon breadth 1.0 x 406mm PVL-BMX78
Yellow, Silicon breadth 1.0 x 406mm PVL-YMX80
White, Silicon breadth 1.0 x 406mm PVL-WMX82

Prymax Suction Set

  • Suitable for pre-operative removal of secretion and body fluids
  • Cut to fit funnel connector to suit different suction pump lines at proximal end. Also available with Kapkon and Conical connector at proximal end.
  • Standard funnel connector at distal end to tubing to connect Yankaur Handle
  • Yankur Handle is open end with 4 lateral eyes
  • Yankaur Handle available in standard or crown tip with or without vacuum thumb control
  • Soft and kink resistant ribbed PVC tubing
  • Tube length: 210cm, 270cm and 300cm

Prymax Suction Set

  • Yankur Handle is open end with 4 lateral eyes to withstand negative pressure and ensure continous and easy suction of fluid
  • Yankaur Handle available in standard or crown tip without vacuum thumb control

Prymax Resp

A Complete Breathing System

World Class Ritht Where You Need It

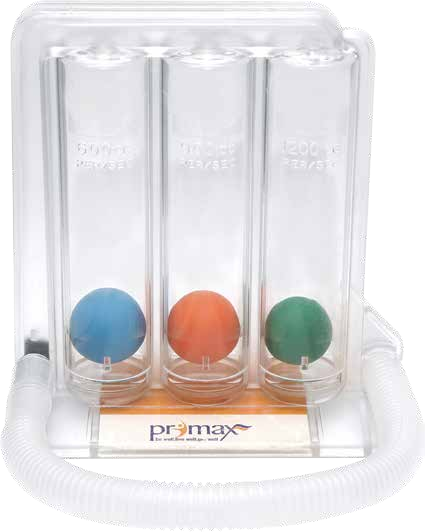

A Complete Breathing System

  • Innovative system to exercise respiration through inspiration.
  • Specially designed with 3 stage chambers to provide more efficient exercise to patient at a step up basis.
  • Device is composed of base and central part divided into three chambers containing three small spheres of different size and colour.
  • Three spheres rise proportionately to the inspiration exerted.

Unit Consists of

  • Transparent main body.
  • Base
  • Small spheres of Orange, Purple and Green colour.
  • Connecting tube with mouth piece.
